High-temperature thermal chamber ESS +265°C

Temperature range

• from -80°C to +265°C

Speed variation

• 10°C/min linear from +200°C to -40°C, with 10 kg of printed circuit boards

• Special high-temperature portholes

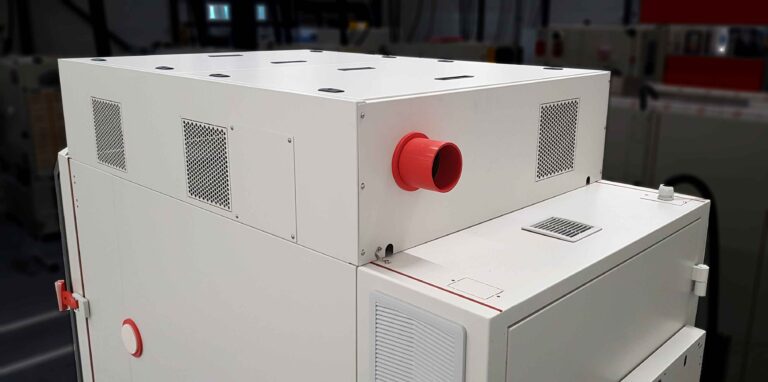

• Warm air extraction and fresh air supply system with motorized dampers
• Nickel-plated evaporator
• Door opening safety controlled by an adjustable temperature range
• Dry air injection solenoid valve
• Air dryer

Spirale lets you control all your equipment. Standard features include :

• extra-large (15″) touchscreen,
• 3 levels of use :
  • Production: simple, clear and functional
  • Standard: a versatile level
  • Laboratory: focused on advanced testing
• a tracking alarm in Shock or VRT mode to ensure reproducibility of your tests.
• programmable pre-treatment/post-treatment on Spirale Vision to temperature condition or even dry your samples at the beginning and/or end of the cycle.
• an automatic defrost function: Spirale Vision optimizes the cycle so that defrosting can be carried out correctly without disturbing the temperature of the samples under test.

Standard mode for easy program creation

Time-optimized or “guaranteed step time” mode (Wait for mode) to guarantee a programmed step time regardless of the number of samples on board.

Spirale’s Energy Saving mode means that only the test cabinet containing the samples is in operation. You save at least 40% on your electricity consumption during your test cycles.

More about Spirale

• 11901_FICHE_PRODUIT_EN.pdf
