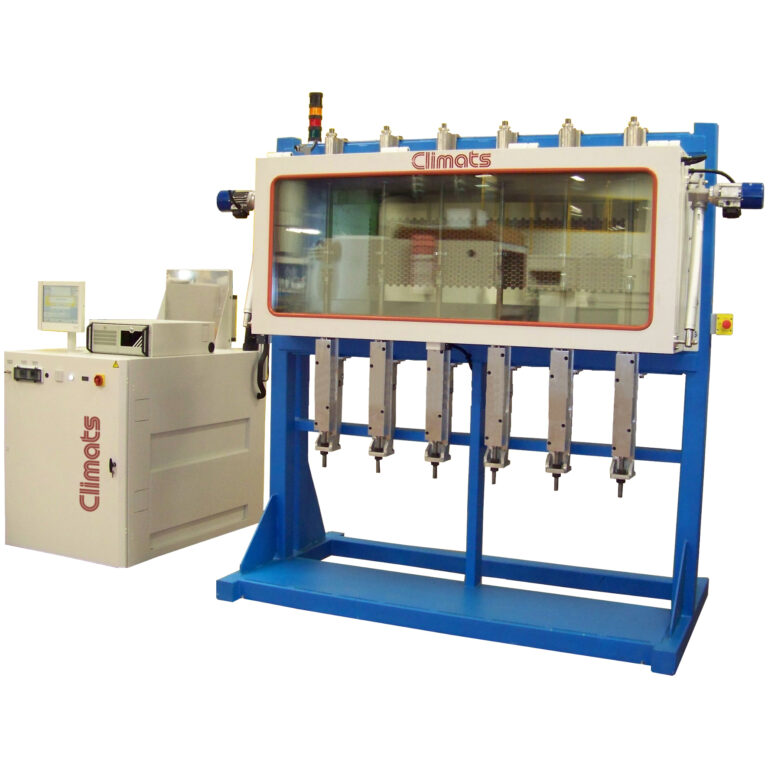

Climatic cell for tensile creep test bench (deformation observation)

This environmental chamber enables you to process any type of test tubes in condition of mechanical creep.

You can carry out highly accurate temperature-humidity characterizations of materials under mechanical stress.
These types of creep stress tests include cycle times of up to several months without interruption.
So you can validate the ageing of your materials through their degradation or deformation with your creep bench and your CLIMATS environmental test chamber.

Product description

Performance
Features
Spirale
Options

Performance

Temperature range

from -10°C to +100°C

Humidity range

from 10 to 95%, limited by a dew point of -5°C

Features

Volume: on request and from 150 dm^³.

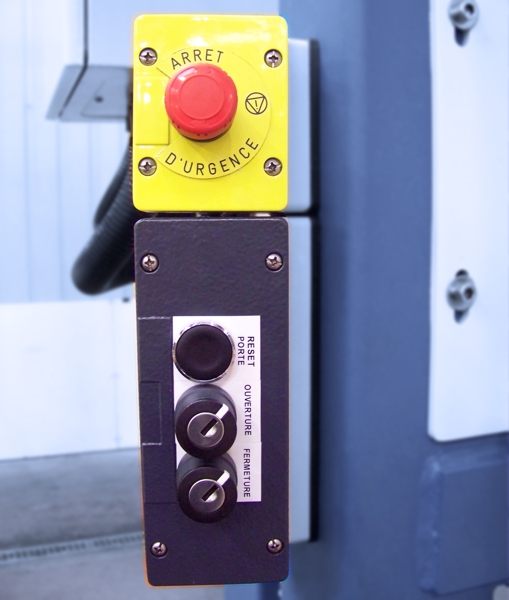

Heated window door with electrically-assisted front opening. Remote control
Double-flow air distribution
Fixed ventilation
Humidity management with thermostatic bath and dryer
Energy-saving machinery with optimized power consumption for all your test equipment.
SPIRALE VISION control system with regulation on the product under test

Dimensions (mm)	W	D	H
Useful	1800	500	650
Overall	2000	1150	840

Spirale

Spirale lets you control all your equipment. Standard features include :

extra-large (15″) touchscreen,
3 levels of use :
- Production: simple, clear and functional
- Standard: a versatile level
- Laboratory: focused on advanced testing
a tracking alarm in Shock or ESS mode to ensure reproducibility of your tests.
programmable pre-treatment/post-treatment on Spirale Vision to temperature condition or even dry your samples at the beginning and/or end of the cycle.
an automatic defrost function: Spirale Vision optimizes the cycle so that defrosting can be carried out correctly without disturbing the temperature of the samples under test.

Standard mode for easy program creation

Time-optimized or “guaranteed step time” mode (Wait for mode) to guarantee a programmed step time regardless of the number of samples on board.

Spirale’s Energy Saving mode means that only the test cabinet containing the samples is in operation. You save at least 40% on your electricity consumption during your test cycles.

More about Spirale

Options

Dewpoint < -10°C
Water cooler
Special portholes
Illuminated column
Air or water condensation
