Thermal shock, vertical, single basket : SCAL CTR

Spirale vision
Energy saving



SCAL CTR : Vertical Thermal Shock with 2 cabinets and a single basket.

  • Models 65, 120, 220 litres.
  • Temperature from -90°C to +180°C (+220°C in option).


This is the central series in the line. This series meets the majority of laboratory tests.

In addition to thermal shock tests, it is possible to use the cold cabinet or the basket independently for Environmental Stress Sceening (ESS).

Find our entire SCAL range of thermal shock enclosures online here !

Performances

Thermal shocks are designed to carry out tests compliant with standards :



  • DIN-IEC-60068-2-14
  • JESD22-A104D
  • MIL-STD-202G
  • MIL-STD-750E
  • MIL-STD-810G
  • MIL-STD-883H

Features

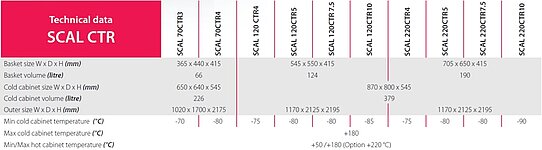

Technical data SCAL CTR
Technical data SCAL CTR

Options

A large solution of option are available, for examples :



  • Heated porthole logical cabinet
  • Intermediate cabinet temperature (3 cabilnet shocks) from -30°C to +20°C
  • Temperature extension to +220°C in the hot cabinet
  • Hinges on the right
  • Onboard air drier
  • Nitrogen sweep with flow meter
  • Sound alarm on functions (end of cycle or fault)
  • Light column
  • Independent min/max double safety
  • Variable ventilation speed drive in the cold cabine (ESS mode)
  • Additional product sensor regulation (mobile)
  • Additional measurement card (24 channels PT100 / 16 channel thermocouples) / HP 20 central channels, 16 input-output dry contacts)
  • Type IEEE 488 digital communication
  • Cable guide
  • Supervision
  • Notched cabinet passage

Spirale vision

SPIRALE VISION allows you to control all your equipments. As standard supply you have :

  • an extra wide touch screen (15")
  • 3 use levels :
    •  PRODUCTION : simple, clear and functional
    • STANDARD : a multi-purpose level
    • LABORATORY : oriented towards advanced tests
  • a monitoring alarm in Shock or ESS mode guaranteeing that your tests can be reproduced
  • programmable pre-treatment /post -treatment on SPIRALE VISION in order to condition the temperature, or even dry your samples at the start and / or end of the cycle.
  • an automatic defrosting function : SPIRALE VISION optimises the cycle so that he defrosting can be correctl without disturbing the tested sample temperature.

The standard mode used to ver easily create programmes.

The optimised Time mode or "Guaranteed segment time" (Wait for mode) making it possible to guarantee a programme segment time whatever the quantity of samples loaded.

SPIRALE VISION was developed for thermal shocks. The Energy Saving mode, you have only the cabinet containing the samples is running , thus reducing energy consumptio by 40 to 70%.
