Thermal shock, vertical, single basket, high capacity:SCAL CTK

Spirale vision
Energy saving

Volumes from 230 litres to over 500 litres.
Temperatures from -90°C to +180°C (+220°C as an option).

Thermal shocks SCAL CTK were developed, in most cases, for high capacit laboatory tests.

By alternatively moving a product from a cold cabinet to a hot cabinet, Thermal Shock environmental chambers enable the temperature to vary very quickly on this product in order to reveal its possible defects or to determine its life lenght.

CTk models are mainly designed for heavy loads or cumbersome samples and, thanks to their low use of ground space, they are particularly advisable in production line.

The CTk range allows combining thermal shock tests with rapid temperature cycling tests in the transfer basket (ESS).

Performances

Thermal shocks designed to carry out tests compliant with standards :

  • DIN-IEC-60068-2-14
  • JESD22-A104D
  • MIL-STD-202G
  • MIL-STD-750E
  • MIL-STD-810G
  • MIL-STD-883H

Features

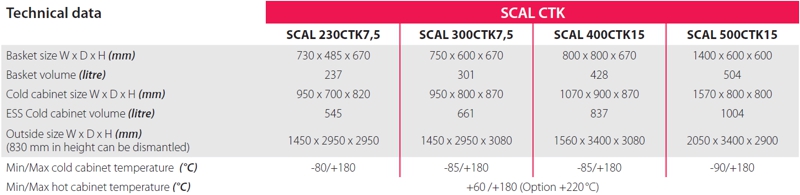

Technical data
Technical data

Options

A large solution of option are available, for examples :

  • Heated porthole logical cabinet
  • Intermediate cabinet temperature (3 cabilnet shocks) from -30°C to +20°C
  • Temperature extension to +220°C in the hot cabinet
  • Hinges on the right
  • Onboard air drier
  • Nitrogen sweep with flow meter
  • Sound alarm on functions (end of cycle or fault)
  • Light column
  • Independent min/max double safety
  • Variable ventilation speed drive in the cold cabine (ESS mode)
  • Additional product sensor regulation (mobile)
  • Additional measurement card (24 channels PT100 / 16 channel thermocouples) / HP 20 central channels, 16 input-output dry contacts)
  • Type IEEE 488 digital communication
  • Cable guide
  • Supervision
  • Notched cabinet passage
Double safety door
Double safety door

Spirale vision

SPIRALE VISION allows you to control all your equipments. As standard supply you have :

  • an extra wide touch screen (15")
  • 3 use levels :
    •  PRODUCTION : simple, clear and functional
    • STANDARD : a multi-purpose level
    • LABORATORY : oriented towards advanced tests
  • a monitoring alarm in Shock or ESS mode guaranteeing that your tests can be reproduced
  • programmable pre-treatment /post -treatment on SPIRALE VISION in order to condition the temperature, or even dry your samples at the start and / or end of the cycle.
  • an automatic defrosting function : SPIRALE VISION optimises the cycle so that he defrosting can be correctl without disturbing the tested sample temperature.

The standard mode used to ver easily create programmes.

The optimised Time mode or "Guaranteed segment time" (Wait for mode) making it possible to guarantee a programme segment time whatever the quantity of samples loaded.

 In Energy Saving mode only the cabinet containing the samples is running, thus reducing energy consumtion by 40 to 70%.
