Thermal shock, vertical, double baskets 3 cabinets:SCAL CTZ

Spirale vision
Energy saving

Volume is up to 350 litres.
Temperatures from -90°C to +180°C (+220°C as an option).

Thermal shock SCAL CTZ are shocks with 2 baskets and 3 cabinets.

The intermediate cabinet is cold and two others are cold.

This double basket thermal shocks are used to double the test volume capacity.

Performances

 Thermal shocks designed to carry out tests compliant with standards :

  • DIN-IEC-60068-2-14
  • JESD22-A104D
  • MIL-STD-202G
  • MIL-STD-810G
  • MIL-STD-883H
  • MIL-STD-750E

Features

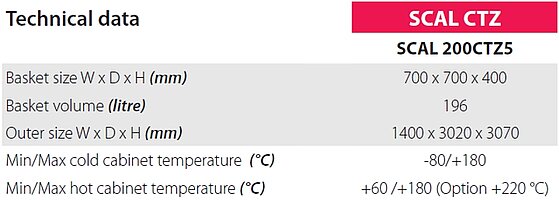

Climats Technical data SCAL CTZ
Climats Technical data SCAL CTZ

Options

A large solution of option are available, for examples :



  • Heated porthole logical cabinet
  • Intermediate cabinet temperature (3 cabilnet shocks) from -30°C to +20°C
  • Temperature extension to +220°C in the hot cabinet
  • Hinges on the right
  • Onboard air drier
  • Nitrogen sweep with flow meter
  • Sound alarm on functions (end of cycle or fault)
  • Light column
  • Independent min/max double safety
  • Variable ventilation speed drive in the cold cabine (ESS mode)
  • Additional product sensor regulation (mobile)
  • Additional measurement card (24 channels PT100 / 16 channel thermocouples) / HP 20 central channels, 16 input-output dry contacts)
  • Type IEEE 488 digital communication
  • Cable guide
  • Supervision
  • Notched cabinet passage

Spirale vision

 SPIRALE VISION allows you to control all your equipments. As standard supply you have :

  • an extra wide touch screen (15")
  • 3 use levels :
    •  PRODUCTION : simple, clear and functional
    • STANDARD : a multi-purpose level
    • LABORATORY : oriented towards advanced tests
  • a monitoring alarm in Shock or ESS mode guaranteeing that your tests can be reproduced
  • programmable pre-treatment /post -treatment on SPIRALE VISION in order to condition the temperature, or even dry your samples at the start and / or end of the cycle.
  • an automatic defrosting function : SPIRALE VISION optimises the cycle so that he defrosting can be correctl without disturbing the tested sample temperature.

The standard mode used to ver easily create programmes.

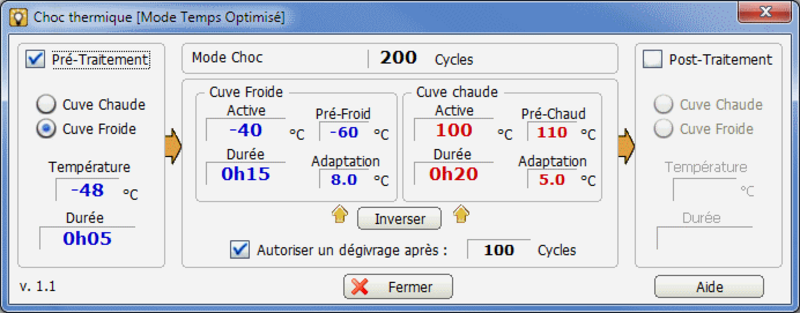

The optimised Time mode or "Guaranteed segment time" (Wait for mode) making it possible to guarantee a programme segment time whatever the quantity of samples loaded.

 In Energy Saving mode only the cabinet containing the samples is running, thus reducing energy consumtion by 40 to 70%.

SPIRALE 3 adpated for thermal shock
SPIRALE 3 adpated for thermal shock
