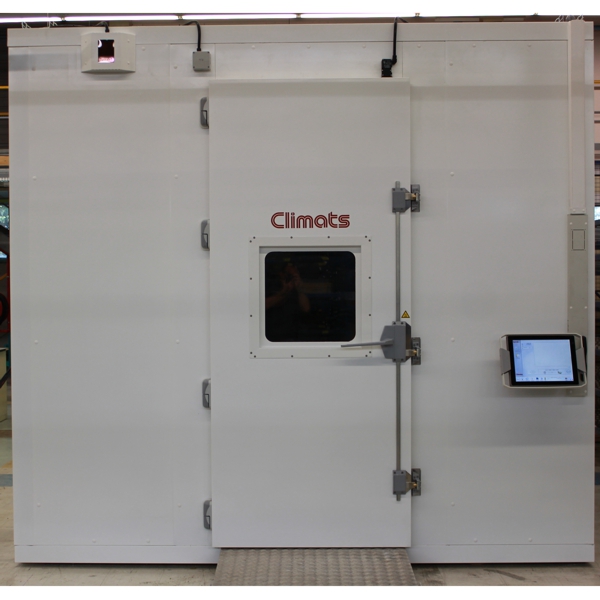

Conception modular chamber for burn-in
Thermal chamber of modular conception, meant for the burn-in of electronic regulation cabinets, in a temperature range of 0°C to +70°C without never exceeding a speed variation higher than 10°C/min.
Performances
Temperature range
- from 0°C to +70°C
Speed variation
- 3°C/min average, with 300 kg of electronic cabinets and a heat dissipation of 6 kW
Features
| Dimensions (mm) | W | D | H |
| Useful | 3000 | 7000 | 2750 |
| Overall | 3200 | 8520 | 3264 |
- Modular conception in sandwich panels, on-site assembly
- Realisation piping and wiring in technical gutter
- Outside air condensing machinery
- SPIRALE VISION piloting
- Cabinets powering off in case of chamber defect
Options
Integration od additional special portholes or any other option on request
