Joined dual-climate chamber

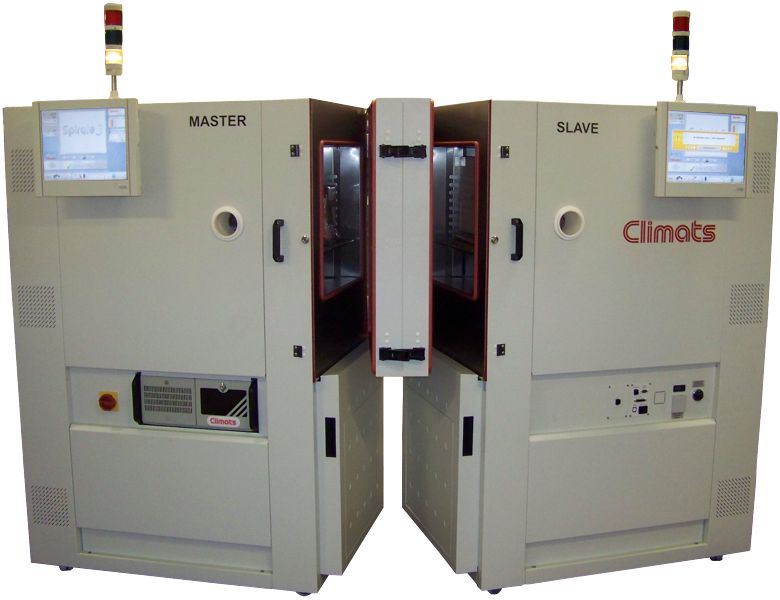

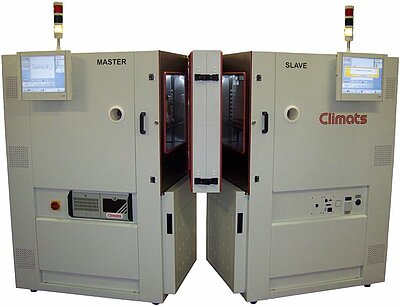

Environmental chamber joined dual climate chamber.
Joined but independent, these two chambers of Excal 140 "hot cold hulmid" type enable window panes, or other materials, to be tested under two different climatic conditions which could, eventually, stand for outside and inside atmospheres.
Frequently used to test insulation or building materials, this equipment is also used to check gasket or assembly tightness.
Performances
Temperature range
- from +180°C to -45°C
Hygrometry
- from 10 to 98% humidity within the temperature range from +20°C to +90°C
Speed variation
- 15°C/min from +80°C to -40°C and the other way round
This association can be carried out with other volumes (from 138 to 1800 l) of the Excal range.
Features
| Dimensions (mm) | W | D | H |
| Useful (each chamber) | 550 | 550 | 750 |
| Overall (chambers together) | 2700 | 850 | 1855 |
A central interface is custom-designed to fit tests requirements and to receive a specific tool-holder. This tool-holder is fixed on the interface and easily removable, so it can be adapted to the different tests requirements.
The central interface can be easily reached by pulling aside the chambers which are equipped with casters and handles.
When the chambers are fully open, it can be accessed from both sides and it is at human height.
These two chambers being linked only by a network cable, they can be quickly disconnected and used as classical climatic chamber.
Spirale vision
The piloting, ensured by Spirale vision, makes it possible to synchronize or desynchronize setpoints in time so the required conditions are perfectly controlled. In "Dual-climate" mode, the piloting, as well as the programming, is assumed by one of the two touch Panel PC. This function enables the commands and the recordings to be centralized onthe same support.
