Volume less than 3m³ / E1-Type

Environmental Stress Screening (ESS) thermal chamber.

Are you looking for a test system that can handle large quantities of products under high thermal stress?

Environmental Stress Screening (ESS) thermal chambers can handle a wide range of temperature and humidity tests.

Environmental Stress Screening (ESS) thermal chamber.

Are you looking for a test system that can handle large quantities of products under high thermal stress?

Environmental Stress Screening (ESS) thermal chambers can handle a wide range of temperature and humidity tests.

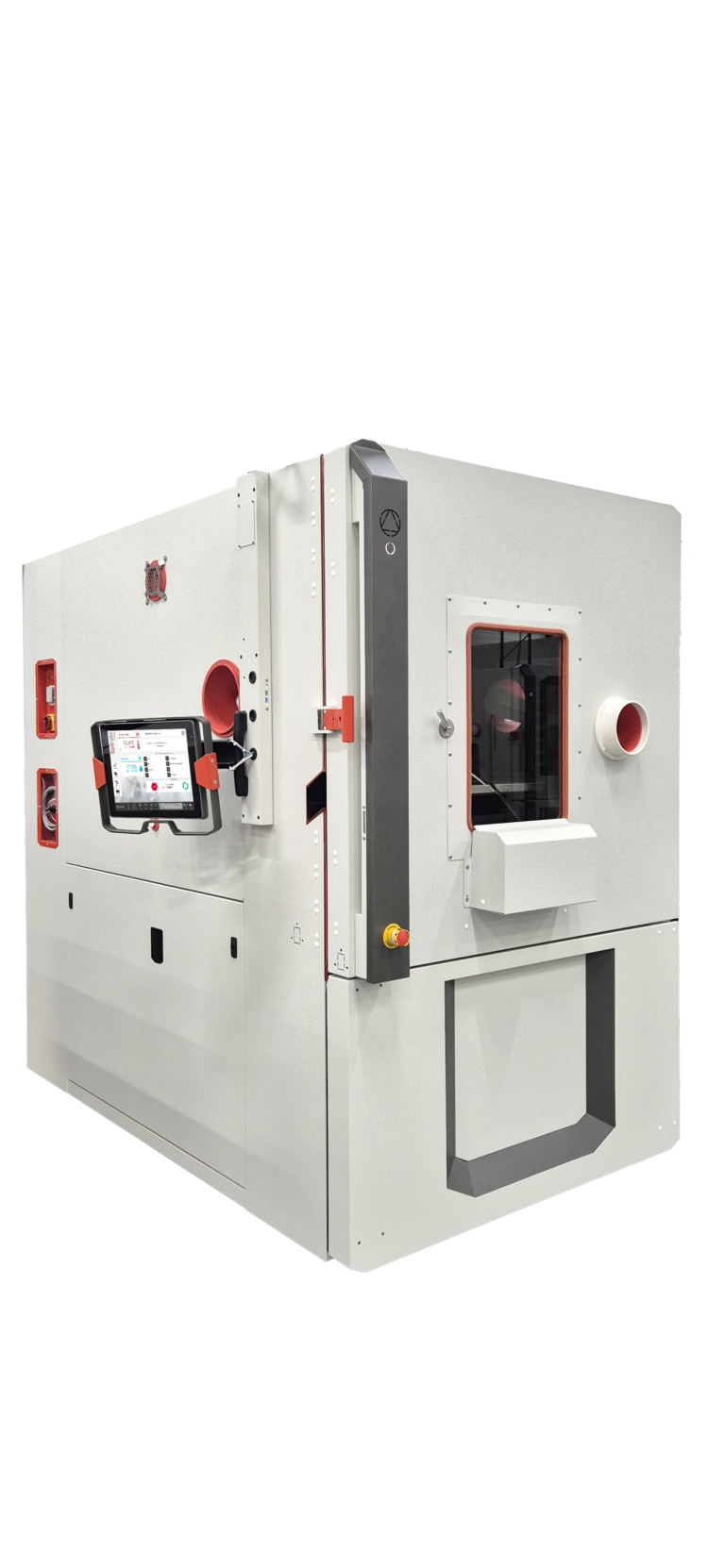

Environmental Stress Screening thermal chamber

This equipment has the latest technologies for regulating and controlling energy consumption. Fast Change Rate (ESS) chambers are capable of adapting to a multitude of temperature and humidity tests.

Thanks to this equipment, you optimize your costs while gaining in reliability.

These environmental test chamber volume range less than 3 m³ (E1 Type) allow you to check the reliability of on-board electronic components such as :

electronic cards,
automotive, aeronautical and defense computers

This equipment also makes it possible to process large quantities of parts (several tens of kilos of products) on the same cycle.
The Fast Change Rate (ESS) mode is used to manage very fast or very slow ramps. For example, average speed of 20°C/min for tests of +90°C / -55°C.
During temperature tests, your equipment can dissipate a lot of energy and Climats equipment will allow you to be as close as possible to the conditions of your products.

Product description

Performance
Features
Spirale
Options
Documentation

Performance

Temperature range: -80°C to +200°C (+250°C on request)
Humidity range: possible
Absorbed dissipative power: over 30kW

Performance under load

+90°C to -55°C, speed greater than 20°C/min
+80°C to 20°C , speed greater than 40°C/min
+80°C to -40°C , speed greater than 20°C/min with a 130kg load

Features

Ventilation: greater than 2m/s
Machinery in Energy Saving mode: low power consumption and low noise level (<70 dBA)

Spirale

Spirale lets you control all your equipment. Standard features include :

extra-large (15″) touchscreen,
3 levels of use :
- Production: simple, clear and functional
- Standard: a versatile level
- Laboratory: focused on advanced testing
a tracking alarm in Shock or VRT mode to ensure reproducibility of your tests.
programmable pre-treatment/post-treatment on Spirale Vision to temperature condition or even dry your samples at the beginning and/or end of the cycle.
an automatic defrost function: Spirale Vision optimizes the cycle so that defrosting can be carried out correctly without disturbing the temperature of the samples under test.

Standard mode for easy program creation

Time-optimized or “guaranteed step time” mode (Wait for mode) to guarantee a programmed step time regardless of the number of samples on board.

The Energy Saving mode in Spirale is a test cabinet-only mode. You save at least 40% on your electricity consumption during your test cycles.

More about Spirale

Options

Numerous options are codified, the majority of which are listed below:

Air dryer (useful for the correct operation of the products tested) Transitions are extremely rapid, increasing the risk of condensation on the products.
Special portholes: notched portholes, tube or energy portholes. Portholes on sides, ceiling, door or in the window
Regulation on the product probe
Process water cooler
Secure your tests with the MINI MAXI electronic temperature safety box on independent PT100 sensor.
Also secure with a safety switch.
Integration of customer-specific portholes, connectors or sensors adapted to your requirements
Reinforced shelves
Increased load deposited on the floor in your test area
Reverse door opening
316L stainless steel test cabinet and nickel-plated evaporator to protect test volume from chemical attack
Customize the color of your environmental test chamber
